Hubs Docks

Models Available

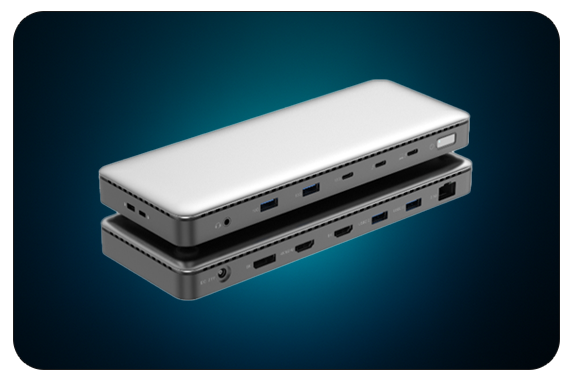

Rogueware Thunderbolt 4 12-In-1 Dock

TB4-DOCK01

Upstream Port: USB Type-C USB 4.0 / Thunderbolt 4
Upstream Speed: Max 40Gbps
Other Compatibility: Universal
Downstream Ports: USB 4.0 / TB4 *1 (Max 40Gbps Shared)
HDMI Ports *2 (Max 8K@30Hz / 4k@60Hz)
DisplayPort *1 (Max 8K@30Hz / 4k@60Hz)
USB Type-C 10Gbps *2 (Max 30W PD Charge)
USB Type-A *4 (10G *2 / 5G *2)
RJ45 2.5G Network *1
3.5mm Combo Audio Jack *1
Power: DC 134W (Supports 96W Charging)

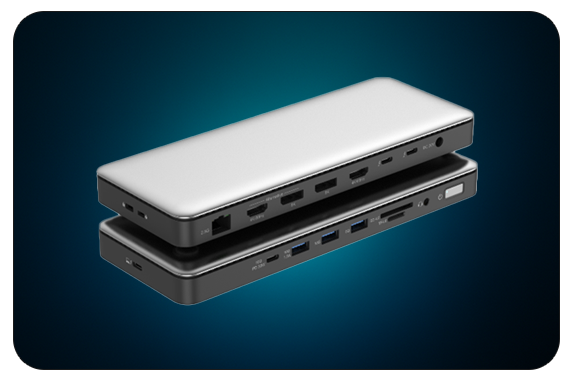

Rogueware Thunderbolt 4 14-In-1 Dock

TB4-DOCK02

Upstream Port: USB-Type C USB 4.0 / Thunderbolt 4
Upstream Speed: Max 40
Other Compatibility: Universal
Downstream Ports: USB 4.0 / TB4 *2 (Max 40Gbps Shared)
HDMI Ports *2 (Max 8K@30Hz / 4k@60Hz)
DisplayPort *2 (Max 8K@30Hz / 4k@60Hz)
USB Type-C 10Gbps *1 (Max 30W PD Charge)
USB Type-A *3 (10G *2 / 5G *1)
SD/TF Reader *1
RJ45 2.5G Network *1
3.5mm Combo Audio Jack *1
Power: DC 150W (Supports 96W Charging)

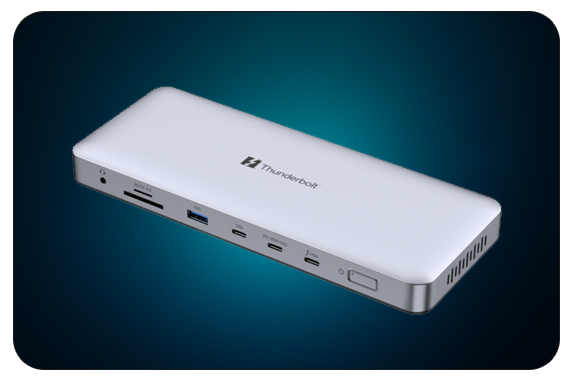

Rogueware Thunderbolt 5 14-In-1 Dock

TB5-DOCK01

Upstream Port: USB-Type C Thunderbolt 5
Upstream Speed: Max 80G/120Gbps
Other Compatibility: USB 4.0 / TB4 / TB3 / DP Alt-Mode
Downstream Ports: Thunderbolt 5 Port *1 (Max 80/120Gbps)
HDMI Port *1 (Max 8K@60Hz / 4K@144Hz)
DisplayPort *1 (Max 8K@60Hz / 4K@144Hz)
USB Type-C 10Gbps *2 (Max 30W PD Charge)
USB Type-A *3 (10G *1 / 5G *2)
SD/TF Reader *1
RJ45 2.5G Network *1
3.5mm Combo Audio Jack *1
Power: DC 180W (Supports 140W Charging)

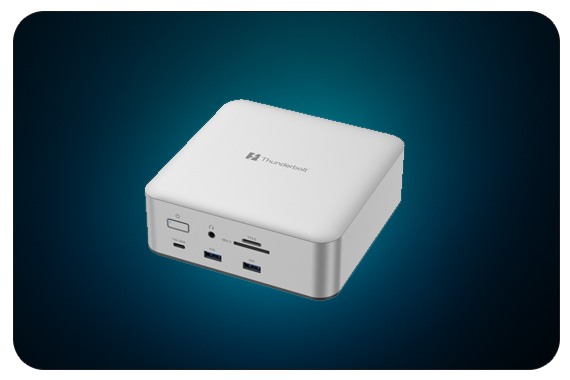

Rogueware Thunderbolt 5 M.2 13-In-1 Dock

TB5-DOCK02

Upstream Port: USB-Type C Thunderbolt 5
Upstream Speed: Max 80G/120Gbps
Other Compatibility: USB 4.0 / TB4 / TB3 / DP Alt-Mode
Downstream Ports: Thunderbolt 5 Port *1 (Max 80/120Gbps)
HDMI Ports *2 (Max 8K@60Hz / 4K@144Hz)
USB Type-C 10Gbps *2 (Max 30W PD Charge)
USB Type-A *3 (10G *1 / 5G *2)
SD/TF Reader *1
RJ45 2.5G Network *1
3.5mm Combo Audio Jack *1
Storage: M.2 NVMe PCIe Gen4x4 *1
Power: DC 180W (Supports 140W Charging)

Models Available

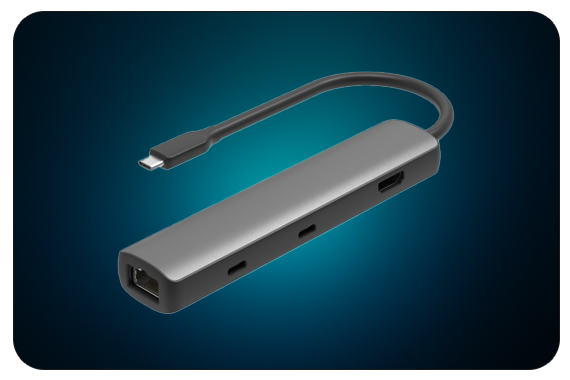

Rogueware USB 4.0 4-In-1 Dock

USB4-DOCK01

Upstream Port: USB Type-C USB 4.0 / Thunderbolt 4
Upstream Speed: Max 40Gbps
Downstream Ports: USB 4.0 Type-C *1 (Max 40Gbps Shared)
HDMI Ports *1 (Max 8K@30Hz / 4k@60Hz)
USB Type-C 10Gbps *2 (Max 100W PD Charge *1)
USB Type-A *2 (10G *2)
RJ45 2.5G Network *1

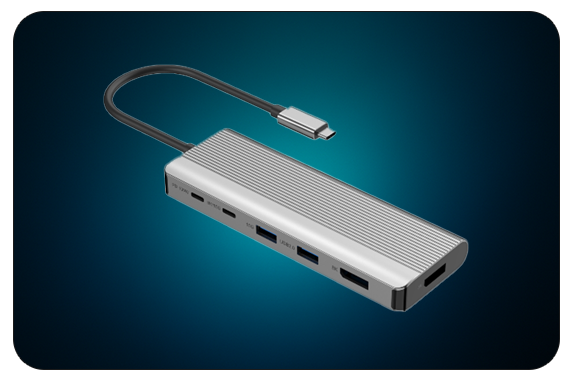

Rogueware USB 4.0 6-In-1 Dock

USB4-DOCK02

Upstream Port: USB 4.0 Type-C
Upstream Speed: Max 40Gbps
Downstream Ports: DisplayPort *2 (Max 8K@30Hz / 4K@60Hz)
USB Type-C 10Gbps *1 (8K Video/10Gbps)
USB Type-C PD Charge Port *1 (100W Max)
USB Type-A *2 (10G *1 / 2.0 *1)

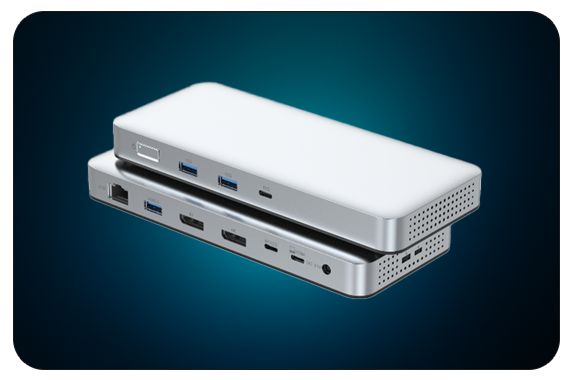

Rogueware USB 4.0 9-In-1 Dock

USB4-DOCK03

Upstream Port: USB 4.0 Type-C
Upstream Speed: Max 40Gbps
Downstream Ports: DisplayPorts *2 (Max 8K@30Hz / 4K@60Hz)
USB Type-C 10Gbps *1 (Max 30W PD Charge)
USB Type-A *3 (10G *2 / 2.0 *1)
RJ45 2.5G Network *1
Power: DC 134W (Supports 96W Charging)

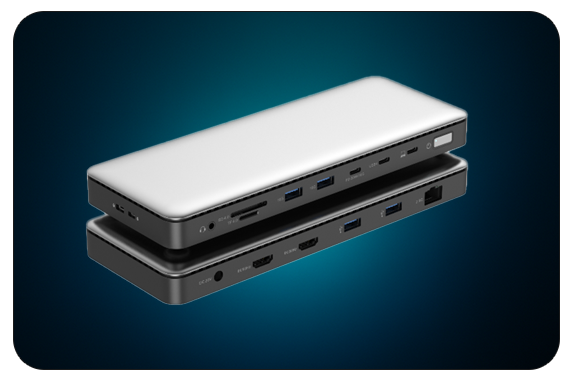

Rogueware USB 4.0 12-In-1 Dock

USB4-DOCK04

Upstream Port: USB 4.0 Type-C
Upstream Speed: Max 40Gbps
Downstream Ports: HDMI Ports *2 (Max 8K@60Hz / 4K@60Hz)
USB Type-C 10Gbps *1 (Max 30W PD Charge)
USB Type-A *4 (10G *2 / 5G *2)
SD/TF Reader *1
RJ45 2.5G Network *1
3.5mm Combo Audio Jack *1
Power: DC 150W (Supports 96W Charging)

Models Available

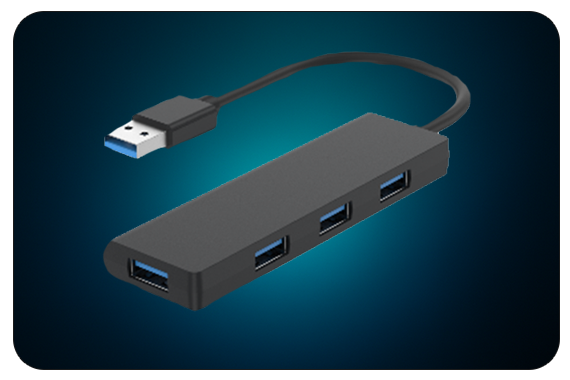

Rogueware 4-Port USB 3.0 Hub

USB-HUB01

Upstream Port: USB Type-A USB 3.0
Upstream Speed: Max 5Gbps
Downstream Ports: USB Type-A *4 (5G *4)

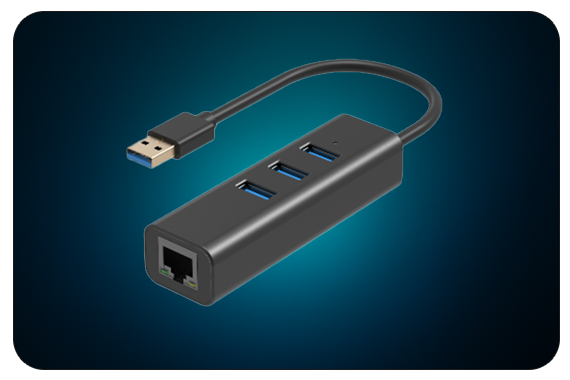

Rogueware 3-Port USB 3.0 & RJ-45 Hub

USB-HUB02

Upstream Port: USB Type-A USB 3.0
Upstream Speed: Max 5Gbps
Downstream Ports: USB Type-A *3 (5G *3)
RJ45 1Gbe Network *1

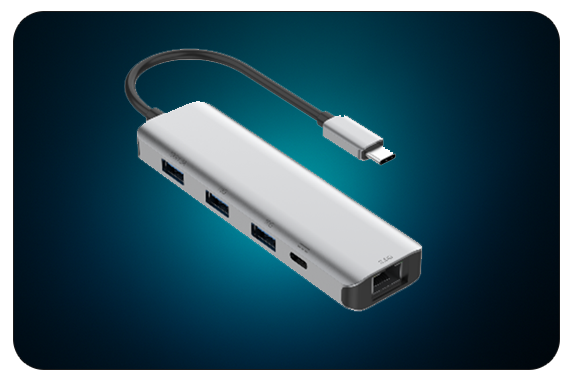

Rogueware 4-Port USB 3.2 & RJ-45 Hub

USB-HUB03

Upstream Port: USB Type-C 3.2
Upstream Speed: Max 10Gbps
Downstream Ports: USB Type-C PD Charge Port *1 (100W Max)
USB Type-A *3 (10G *3)
RJ45 2.5G Network *1

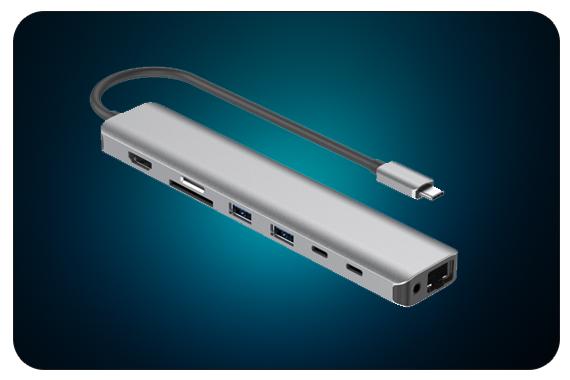

Rogueware 7-Port USB 3.2 & RJ-45 Hub

USB-HUB04

Upstream Port: USB Type-C 3.2
Upstream Speed: Max 10Gbps
Downstream Ports: HDMI Ports *1 (Max 4K@60Hz)
USB Type-C 5Gbps *1
USB Type-C PD Charge Port *1 (100W Max)
USB Type-A *2 (5G *2)
SD/TF Reader *1
RJ45 1Gbe Network *1
3.5mm Combo Audio Jack *1
